MS Pipe (Mild Steel Black Pipe)
Schedule 10, 20, 40 and 80 to ASTM A53, Grade A and Grade B
1/2" to 16" dia, wall to 12 mm
ISO 9001 certified · manufacturing since 1991
Every length hydro-tested before it leaves the mill
MS and GI pipe from 1/2" to 16" diameter, hollow section, scaffolding tube and cold rolled steel tubing — manufactured on fully automatic imported plant and hydro-tested before it leaves the works.
- ISO 9001:2008
- ASTM A53
- BS EN 10255
1991 Manufacturing since
1/2"–16" Pipe diameter range
50 bar GI hydro pressure
ISO 9001 Certified quality system
- EST. 1991
- MS PIPE 1/2" – 16"
- SCH 10 · 20 · 40 · 80
- ASTM A53 GR A / B
- HYDRO-TESTED
- GI GRADE L · M · H
- BS EN 10255:2004
- ISO 9001:2008
- MILL TEST CERTIFICATE
- A.N. INDUSTRIES
What the mill does
Core capabilities

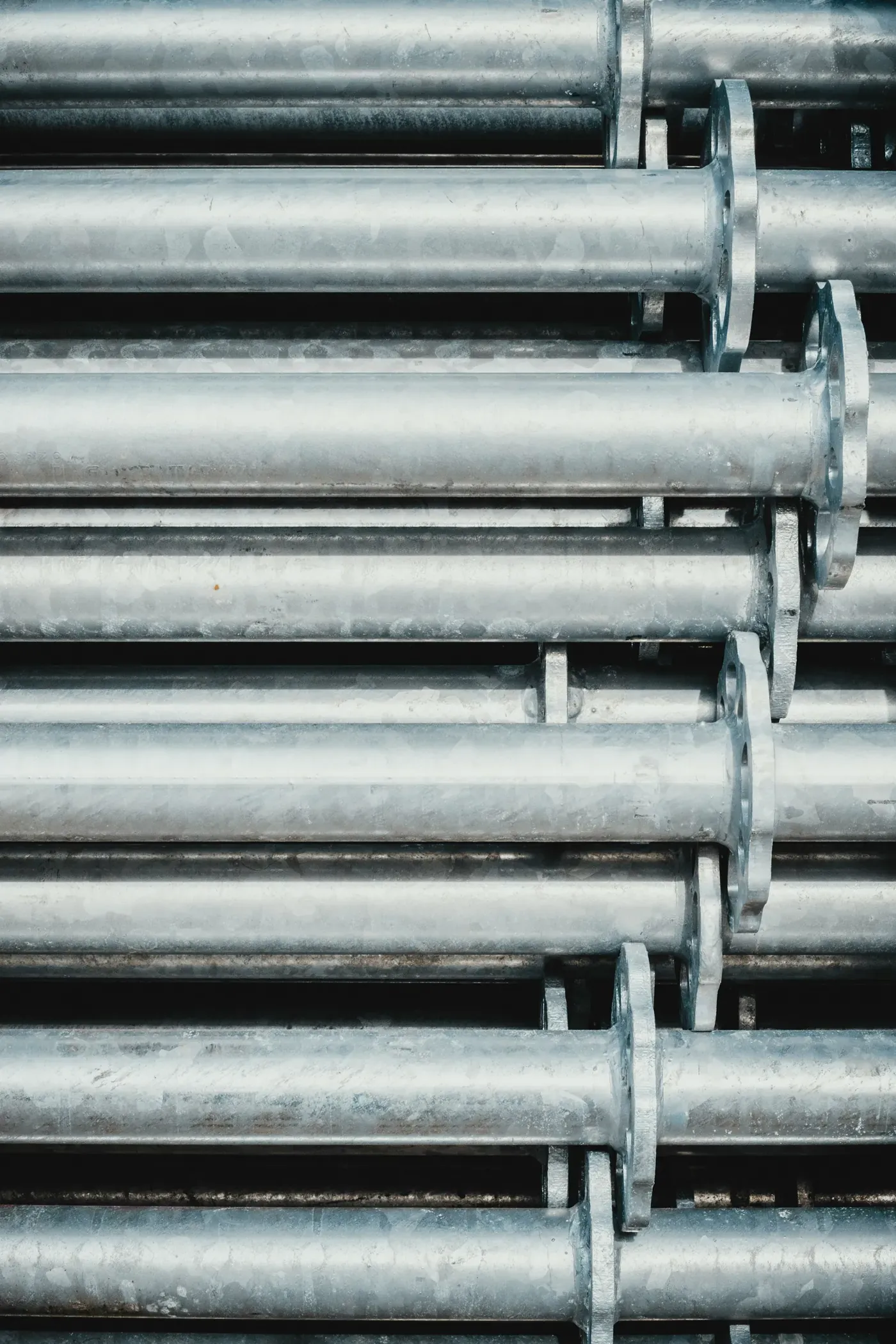

Galvanized Iron (GI) Pipe
Hot-dipped galvanized to BS EN 10255:2004 in Grades L, M and H
15 mm to 150 mm (1/2" to 6")

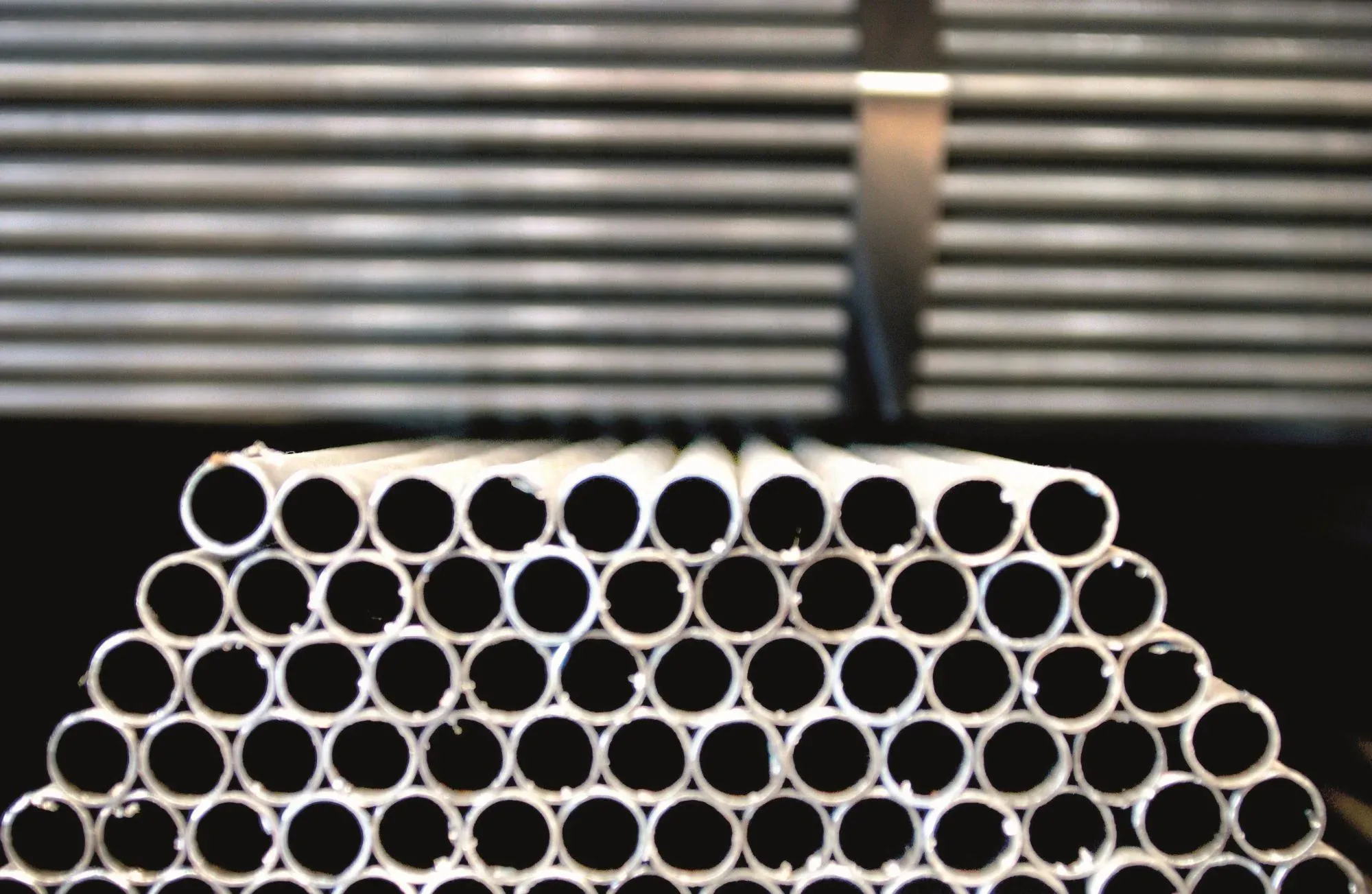

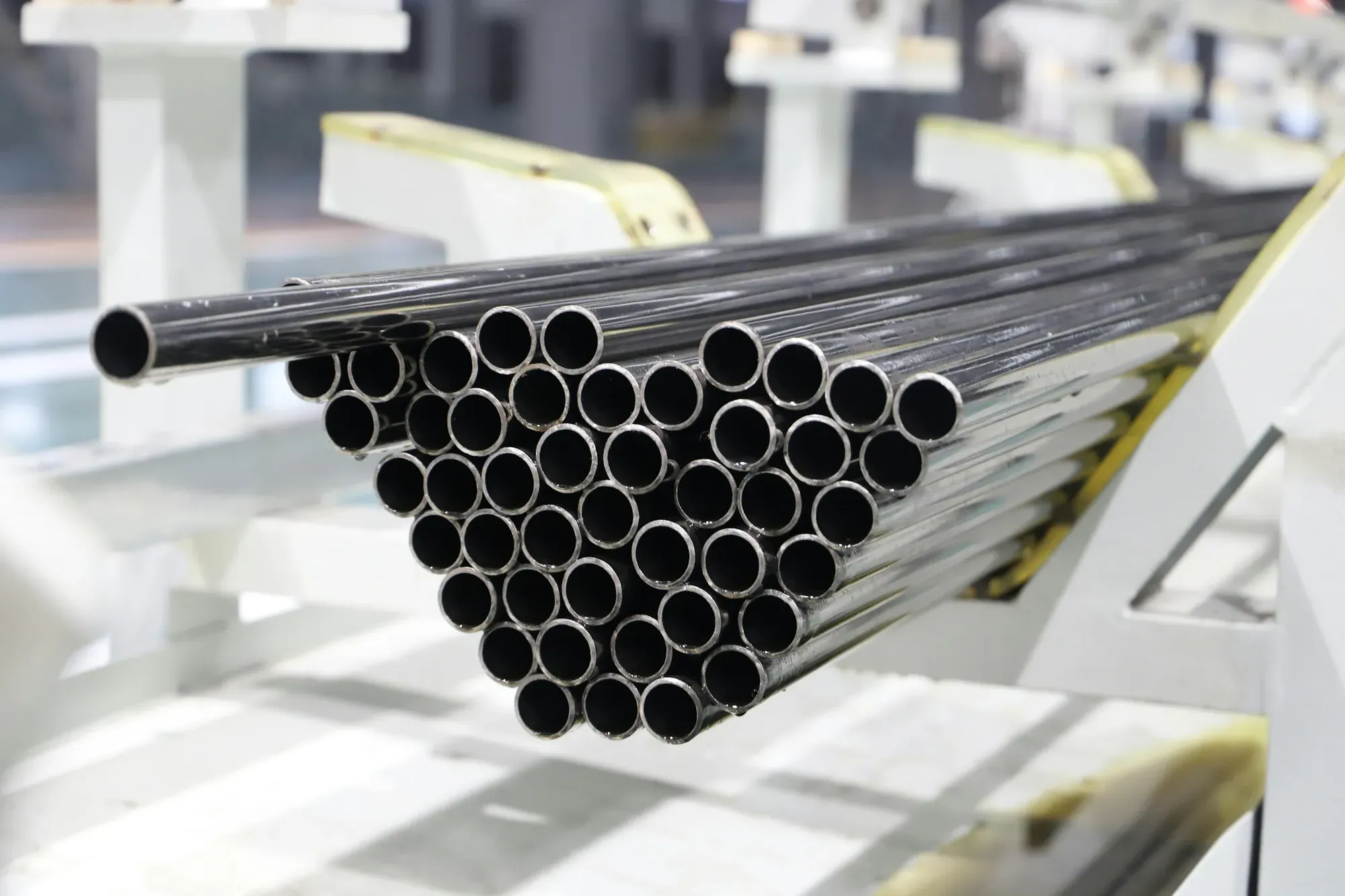

Cold Rolled Steel Tubing
Round, square, oval and elliptical tube in 0.6 mm to 2.0 mm wall
9 mm to 75.9 mm round; 0.60 mm to 2.00 mm wall

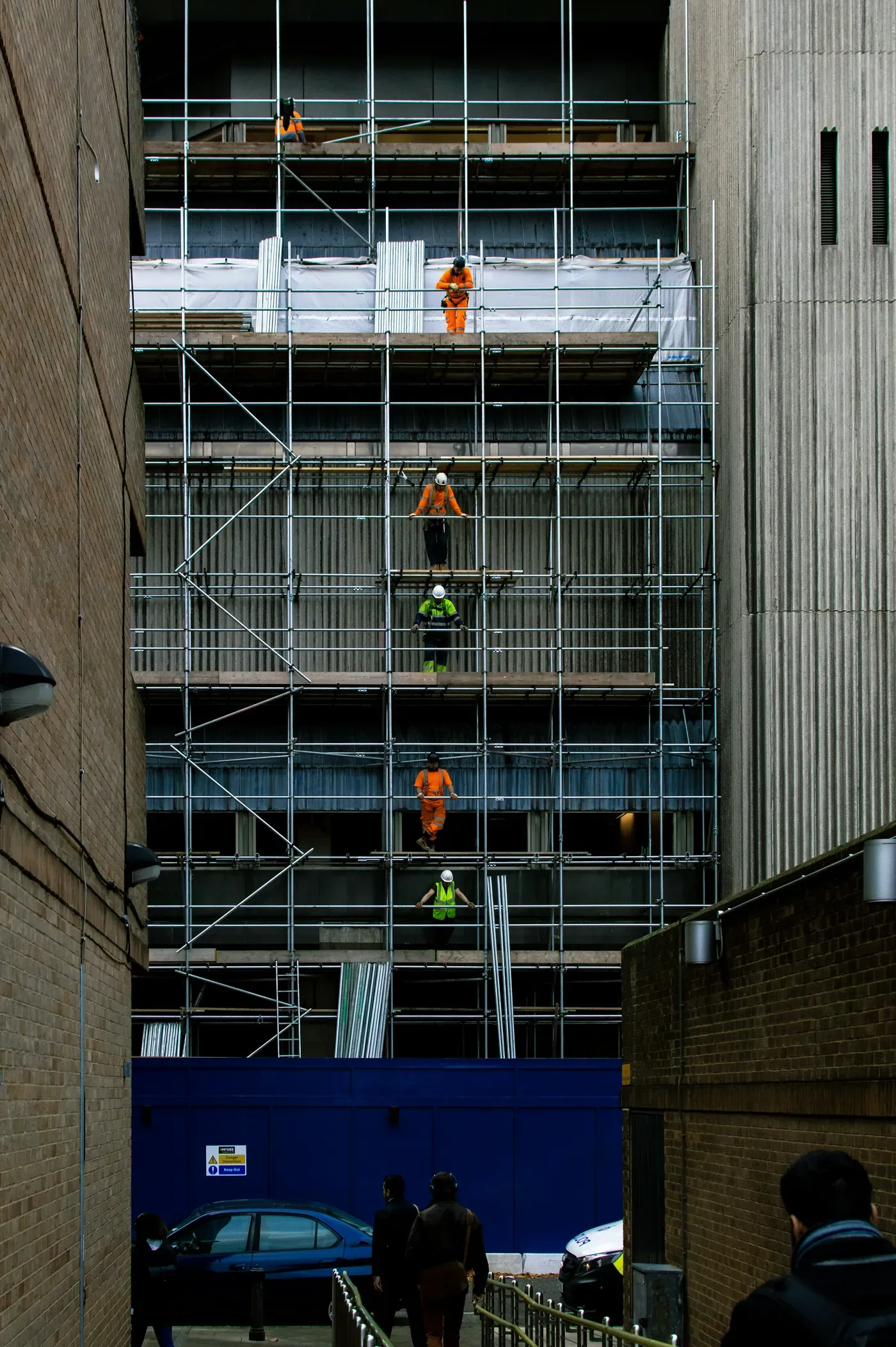

Scaffolding Tubes
Type 1 and Type 2 to BS EN 39:2001 — safety first
1 1/2" nominal, lengths to order

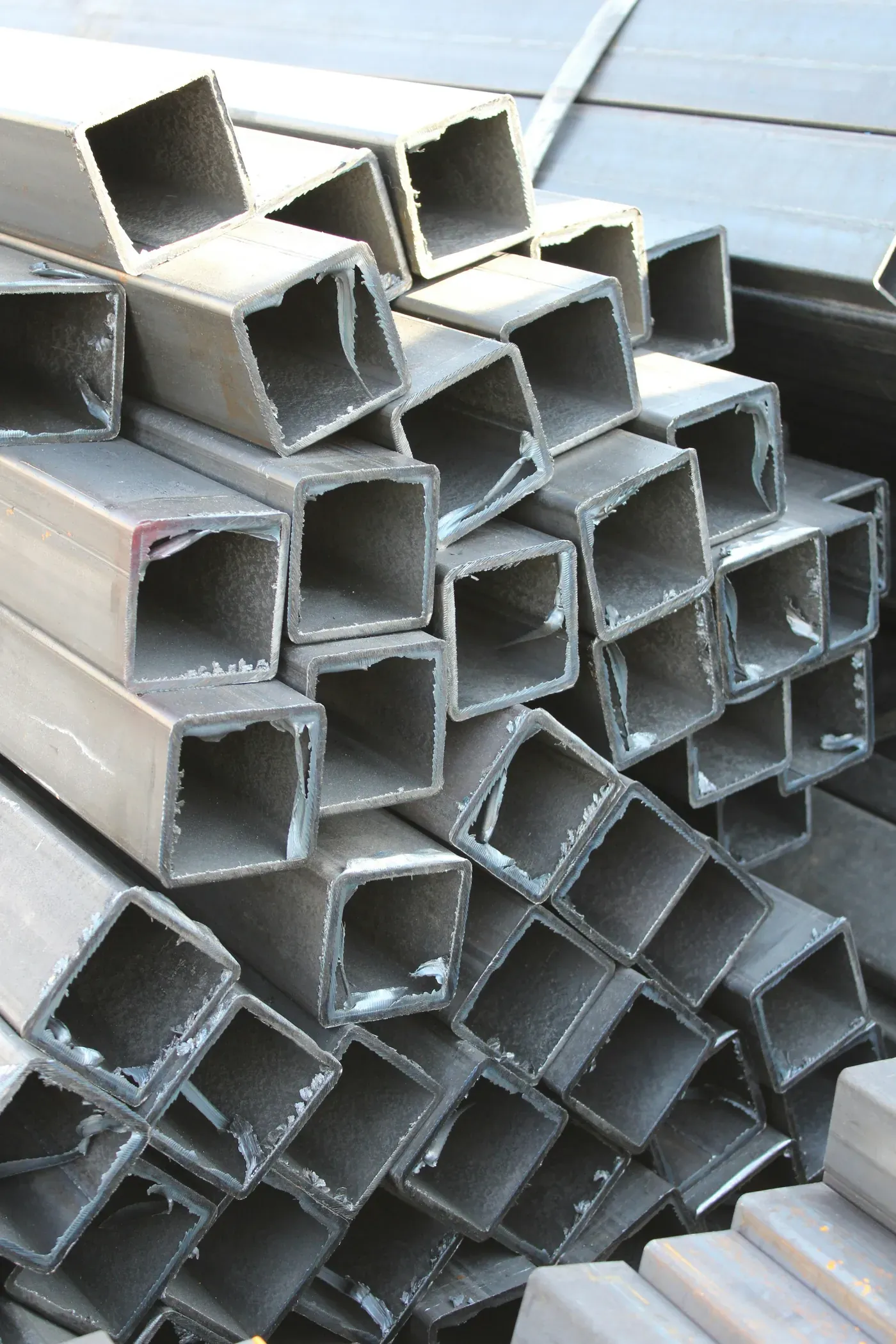

Square & Rectangular Hollow Section
Cold rolled and hot rolled ERW tube for structure and furniture
Standard and special sizes to order

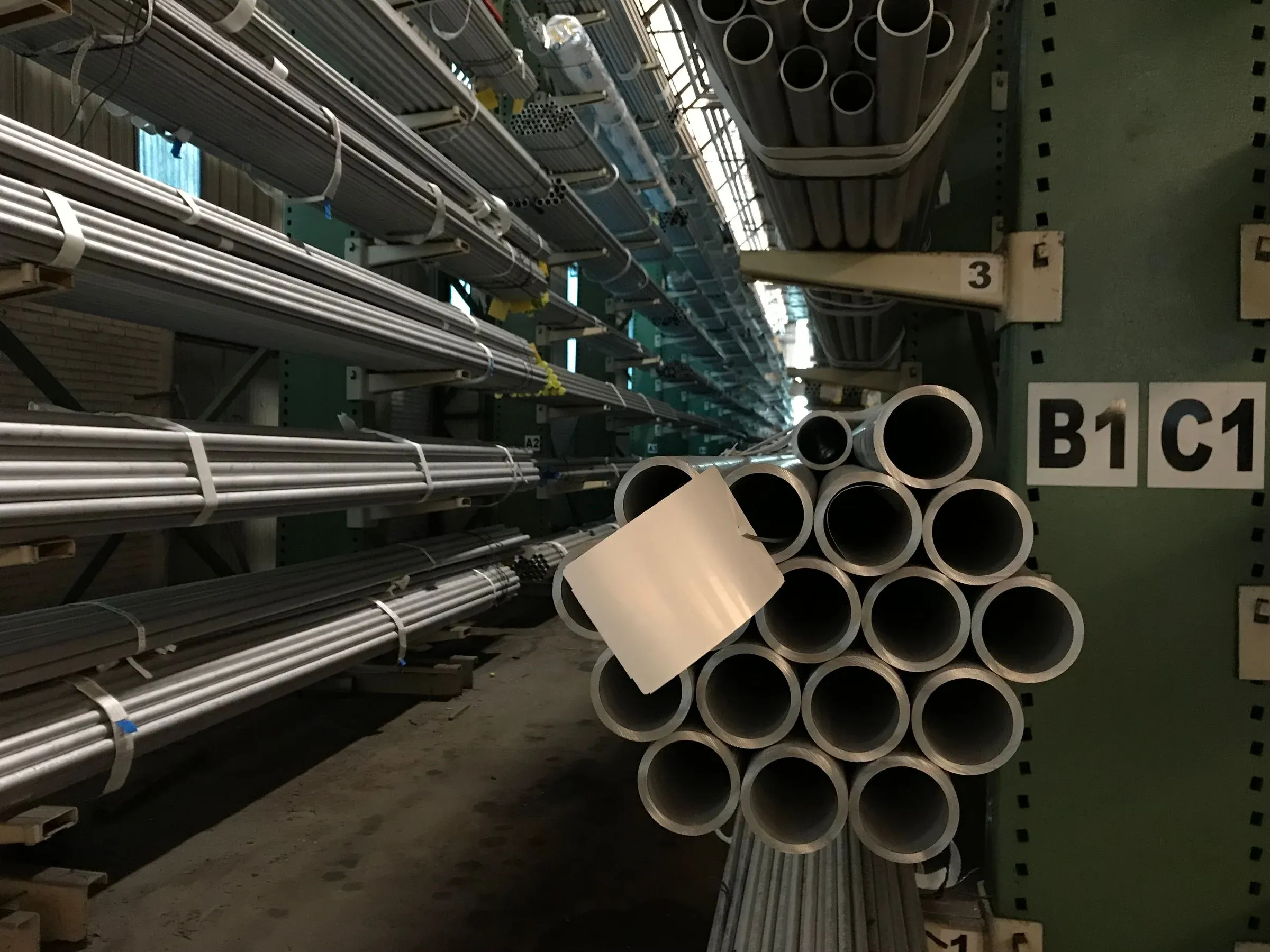

High, Medium & Low Pressure Boiler Tubes
Tube for steam, heat transfer and pressure duty
Sizes and wall thicknesses to enquiry

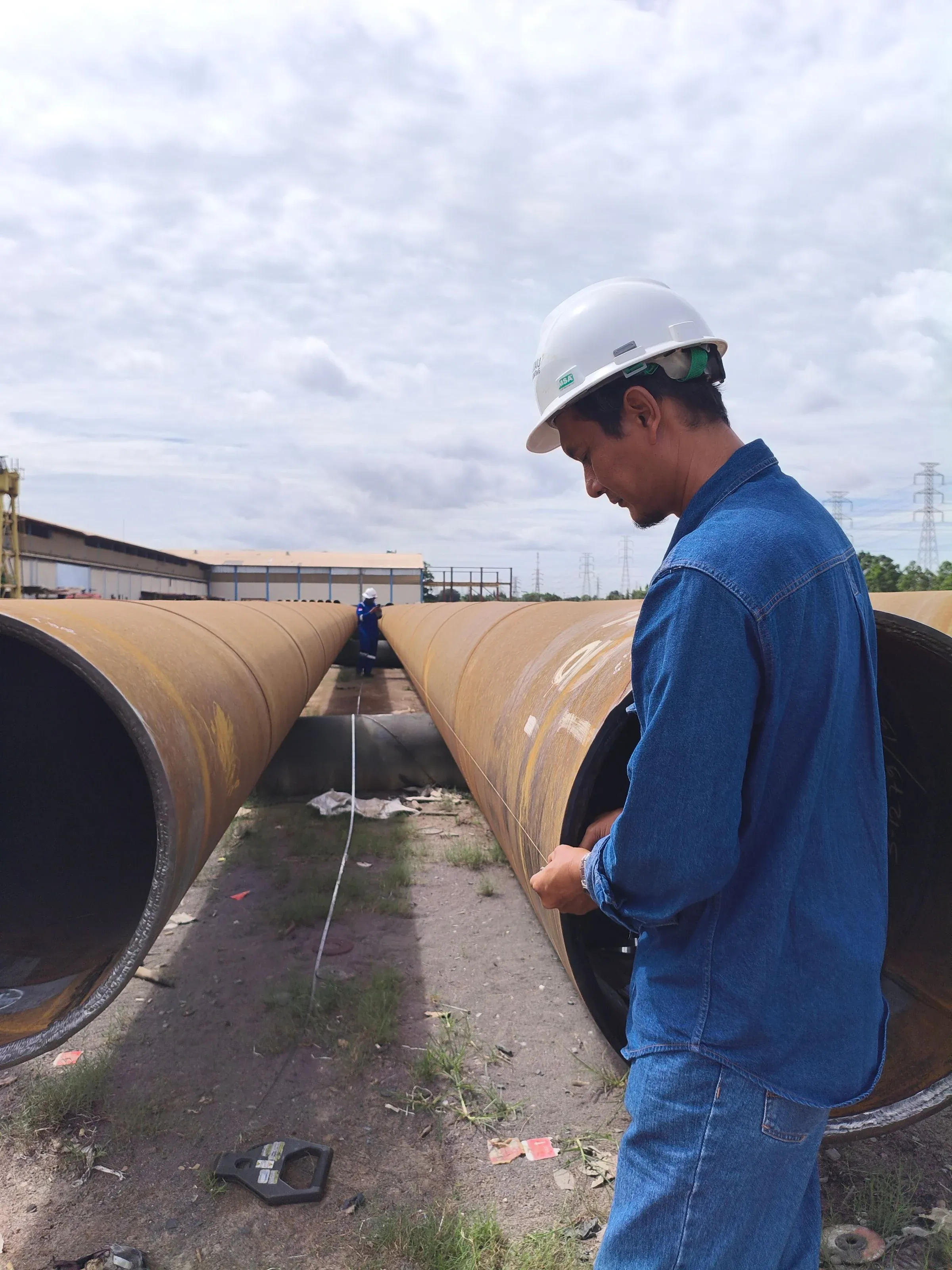

API 5L Line Pipe
PSL 1 and PSL 2, Grade B through X60, for oil, gas and water transmission
Certified range per licence scope — confirm with sales

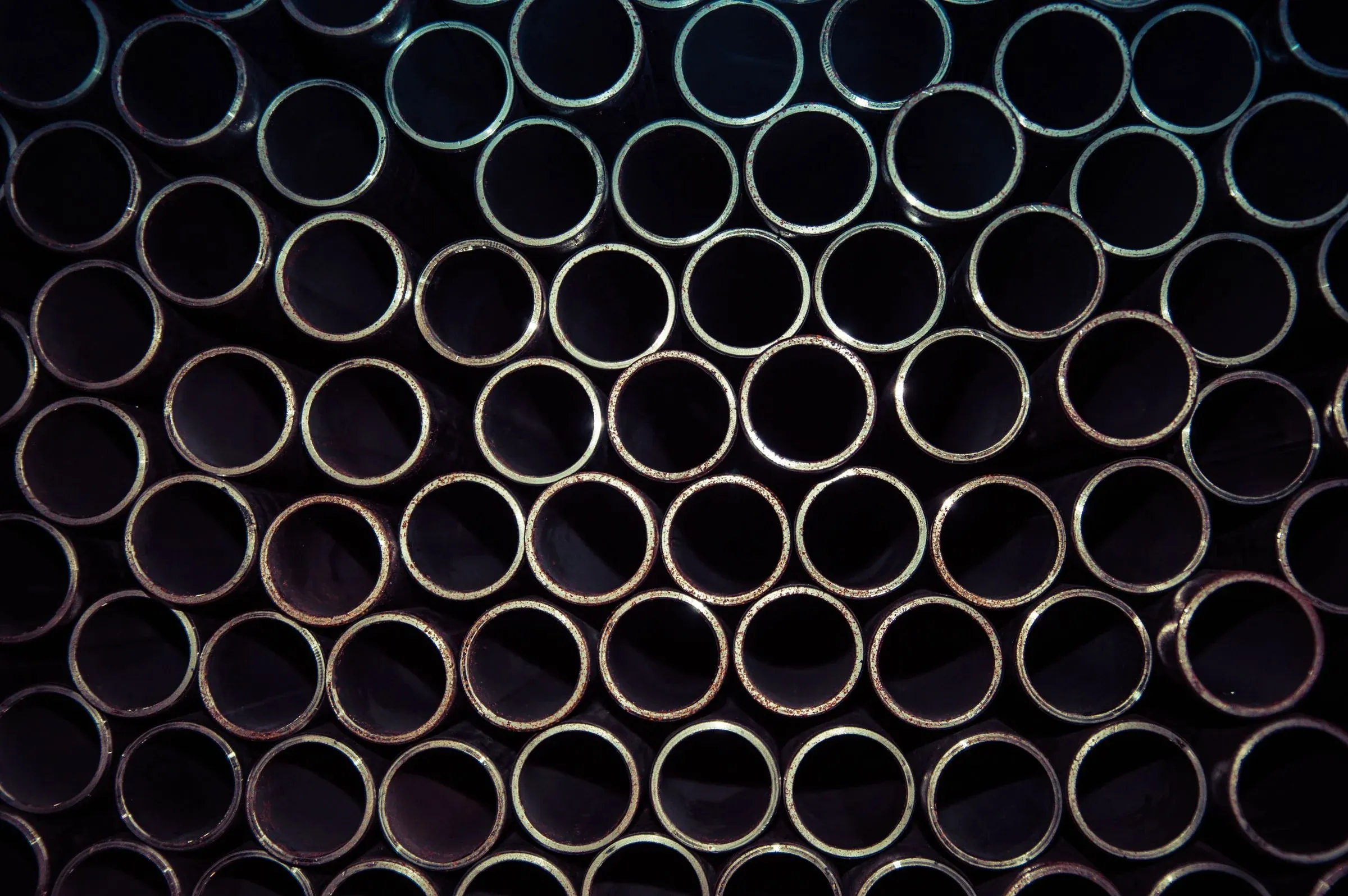

Steel Conduit & LTZD Profiles
ERW conduit for cable runs, and L, T, Z and D profiles for doors and windows
Conduit to order; LTZD profiles 0.70 mm to 1.20 mm

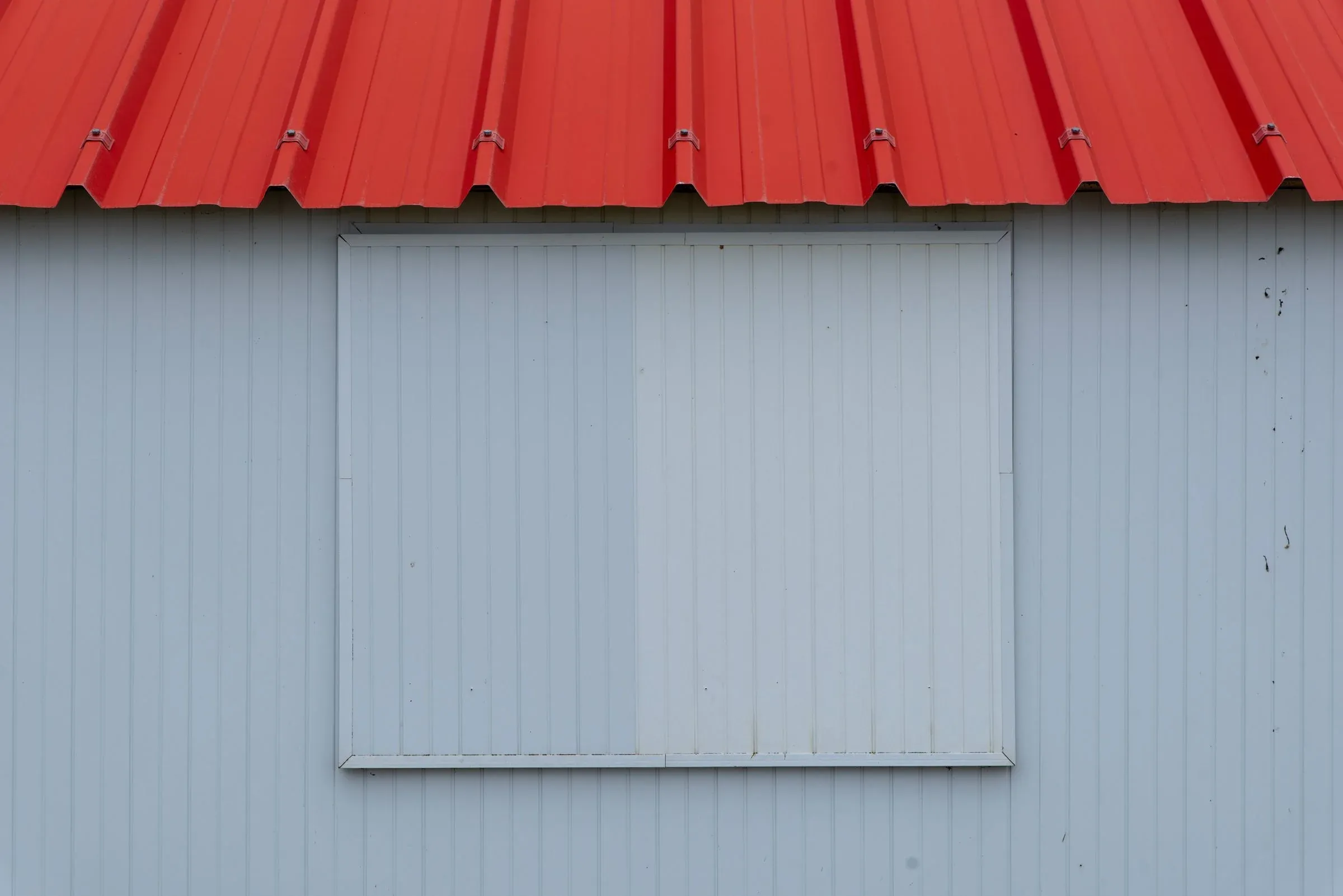

Sheet Profiles — MS, GI & PPGI
Plain, galvanized and colour-coated sheet, flat or roll-formed
0.12 mm to 20 mm, widths to 1500 mm

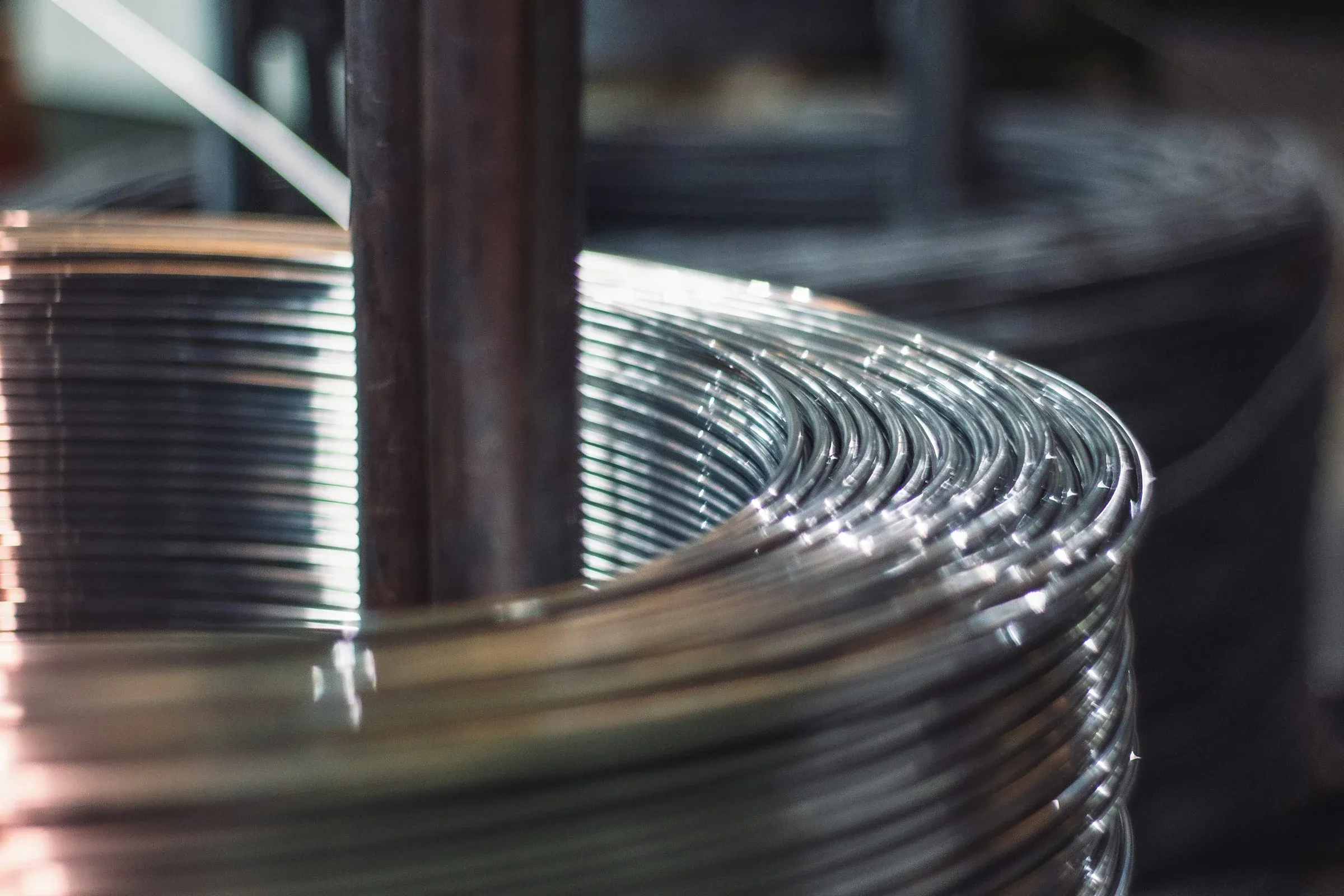

Cold Drawn Wire
Cold drawn mild steel wire, 2 to 24 SWG, hard drawn or annealed
2 SWG to 24 SWG (7.01 mm – 0.56 mm), 23 gauges

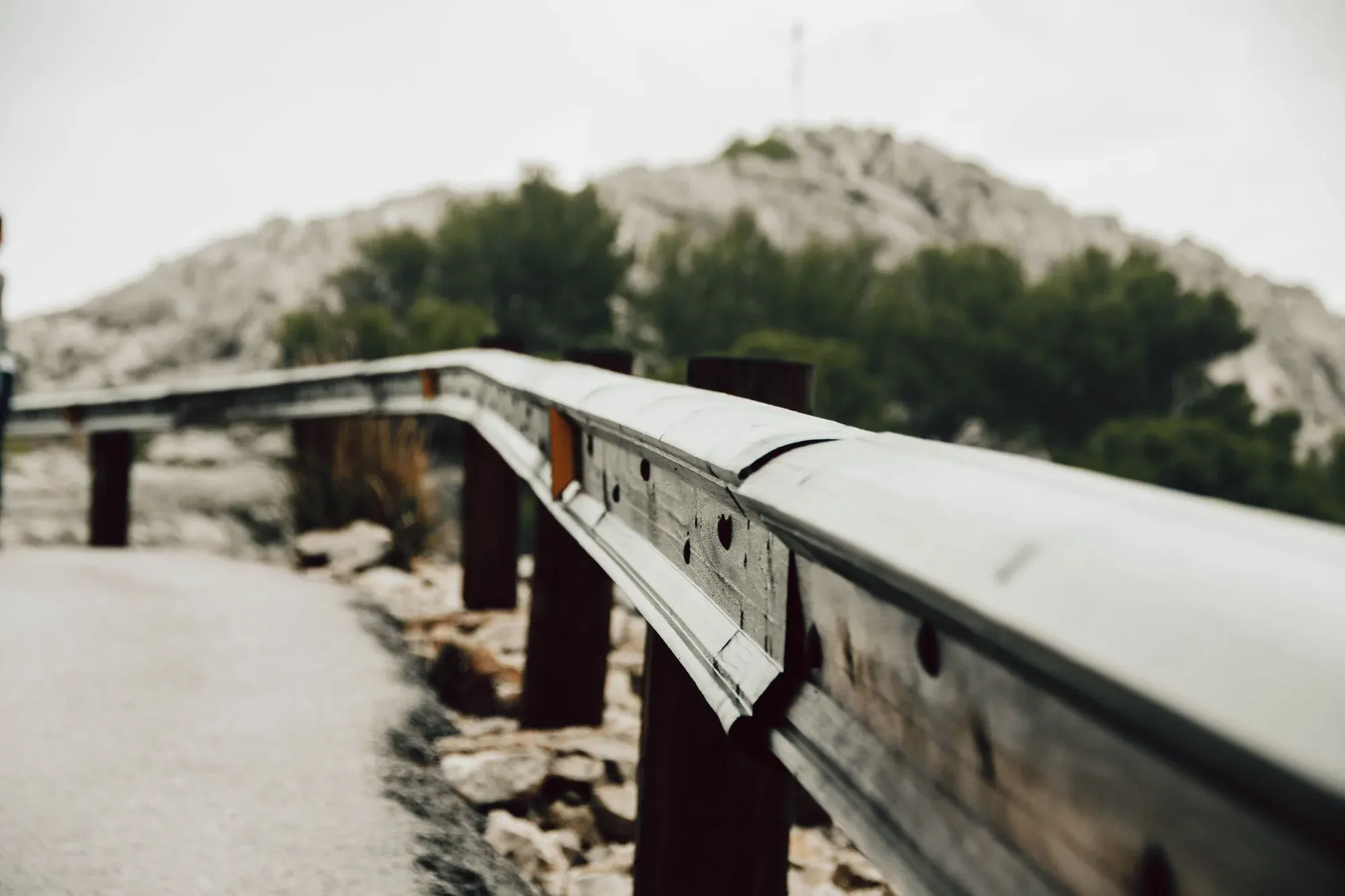

Highway Guard Rails
W-beam and thrie-beam crash barrier to AASHTO M180
W-beam and thrie-beam, 2.67 mm and 3.43 mm
Capacity
Why buyers keep coming back to A.N. Industries

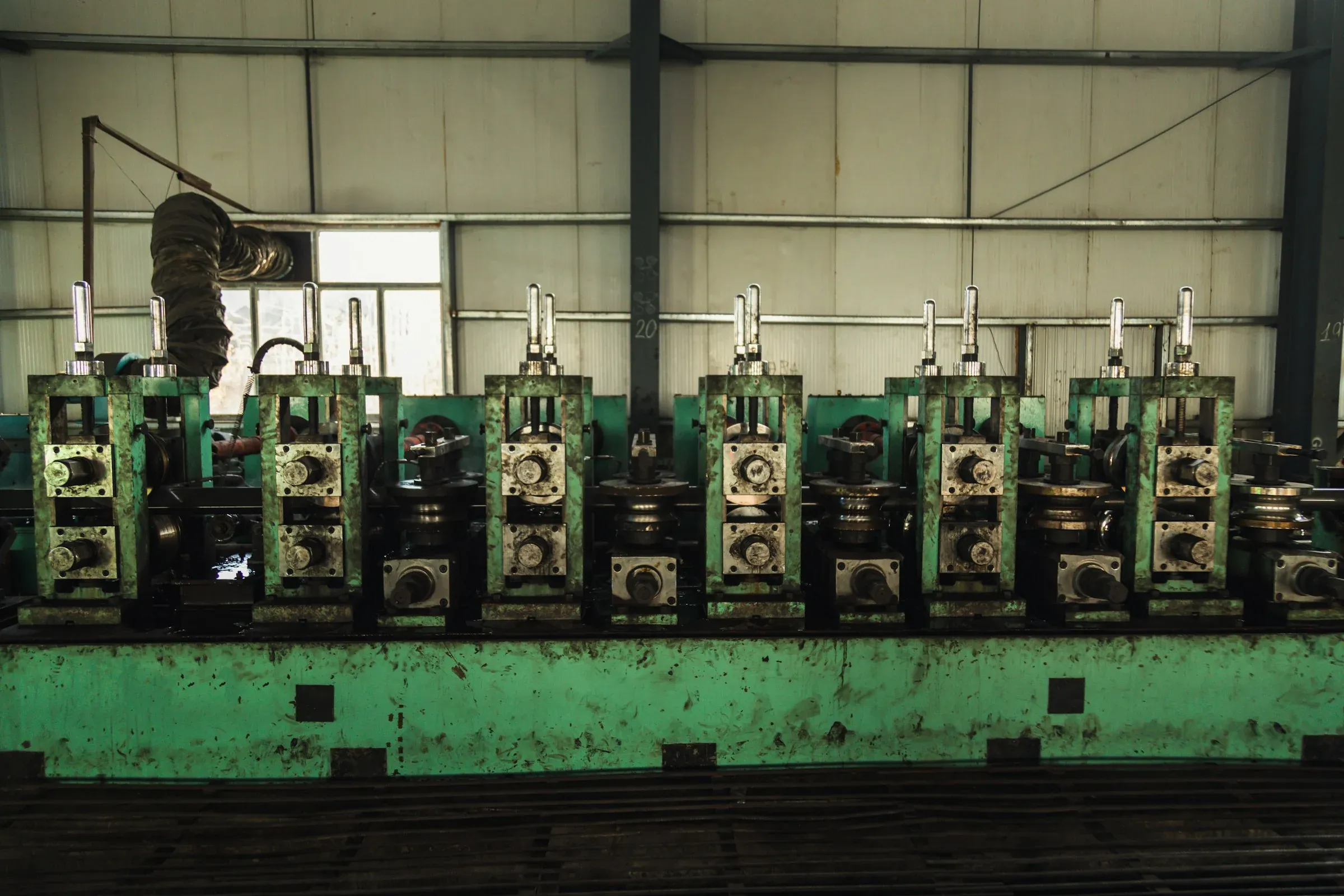

A.N. Industries has been manufacturing steel pipe and tube since 1991, incorporated with the Securities and Exchange Commission of Pakistan and certified to ISO 9001. The plant on G.T. Road runs fully automatic imported lines, which is what lets us hold wall thickness and straightness across a run rather than across a sample.
- 1991
- Manufacturing since
- 1/2"–16"
- Pipe diameter range
- 50 bar
- GI hydro pressure
Size charts
Dimensions and weights
The Schedule 40 chart in full. Grade L, M and H galvanized ranges and the scaffold types are on the specifications page.
MS Pipe — Schedule 40 dimensions
ASTM A53
| Nominal size in | Outside diameter | Wall thickness | Weight | |||
|---|---|---|---|---|---|---|
| in | mm | in | mm | lb/ft | kg/m | |
| 1/8 | 0.405 | 10.3 | 0.068 | 1.73 | 0.24 | 0.37 |
| 1/4 | 0.540 | 13.7 | 0.088 | 2.24 | 0.42 | 0.63 |
| 1/2 | 0.840 | 21.3 | 0.109 | 2.77 | 0.85 | 1.27 |
| 3/4 | 1.050 | 26.7 | 0.113 | 2.87 | 1.13 | 1.69 |
| 1 | 1.315 | 33.4 | 0.133 | 3.38 | 1.68 | 2.50 |
| 1 1/4 | 1.660 | 42.2 | 0.140 | 3.56 | 2.27 | 3.39 |
| 1 1/2 | 1.900 | 48.3 | 0.145 | 3.68 | 2.72 | 4.05 |
| 2 | 2.375 | 60.3 | 0.154 | 3.91 | 3.65 | 5.44 |
| 2 1/2 | 2.875 | 73.0 | 0.203 | 5.16 | 5.79 | 8.63 |
| 3 | 3.500 | 88.9 | 0.216 | 5.49 | 7.58 | 11.29 |
| 3 1/2 | 4.000 | 101.6 | 0.226 | 5.74 | 9.11 | 13.57 |
| 4 | 4.500 | 114.3 | 0.237 | 6.02 | 10.79 | 16.07 |
| 5 | 5.563 | 141.3 | 0.258 | 6.55 | 14.62 | 21.77 |
| 6 | 6.625 | 168.3 | 0.280 | 7.11 | 18.97 | 28.26 |
| 8 | 8.625 | 219.1 | 0.322 | 8.18 | 28.55 | 42.55 |
| 10 | 10.750 | 273.0 | 0.365 | 9.27 | 40.48 | 60.31 |
| 12 | 12.750 | 323.8 | 0.406 | 10.31 | 53.52 | 79.73 |
| 14 | 14 | 355.6 | 0.437 | 11.13 | 63.44 | 94.55 |
| 16 | 16 | 406.4 | 0.500 | 12.70 | 82.77 | 123.30 |
Schedule 10, 20 and 80 available to the same standard, Grade A and Grade B. Wall thickness runs to 12 mm, which is what sets the top of this table — heavier walls are supplied against order.
Capability
Why buyers keep coming back to A.N. Industries
A.N. Industries has been manufacturing steel pipe and tube since 1991, incorporated with the Securities and Exchange Commission of Pakistan and certified to ISO 9001. The plant on G.T. Road runs fully automatic imported lines, which is what lets us hold wall thickness and straightness across a run rather than across a sample.
More about the company
Quality & standards
Made to standard, checked before it ships
Every product in the range is manufactured against a published specification, and every consignment leaves with a mill test certificate.
- ISO 9001 Quality Management Systems Certified quality management system covering manufacturing, inspection and dispatch.
- ASTM A53 Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless Governs our MS pipe in Schedule 10, 20, 40 and 80, Grade A and Grade B.
- BS EN 10255:2004 Non-alloy steel tubes suitable for welding and threading Governs GI pipe in Grades L, M and H. Formerly BS 1387:1985.
- BS EN 10226:2004 Pipe threads where pressure-tight joints are made on the threads Governs the threading on our galvanized iron pipe.

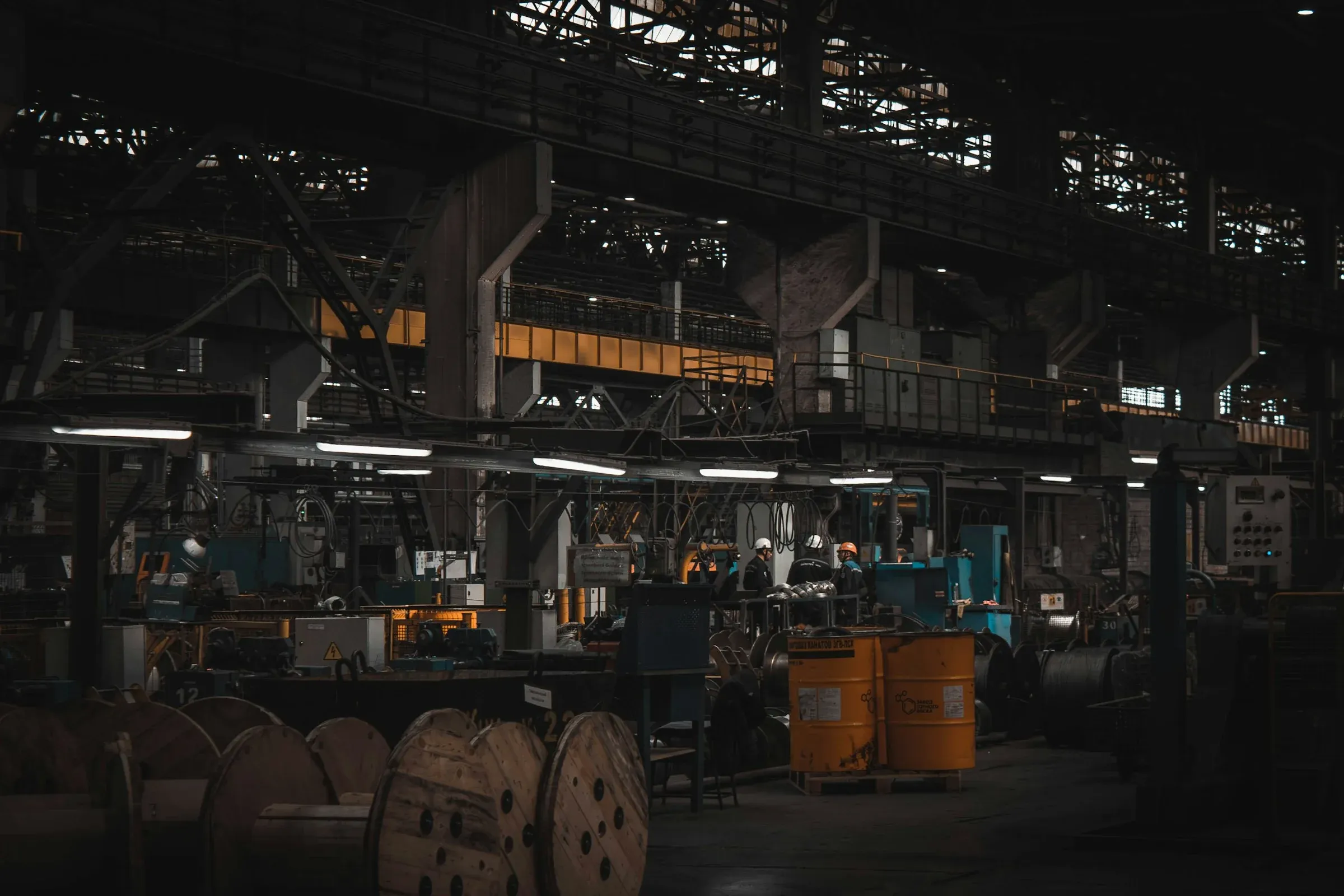

Where we make it
Our plant in Lahore
The works stand at 9-KM G.T. Road in Ferozewala, Shahdara — on Lahore's northern industrial corridor and on the main route toward Gujranwala and Rawalpindi, which is what keeps haulage short for sites across upper Punjab.
Need a quotation?
Send us your sizes, grades and quantities and we will come back with a price and a lead time.
